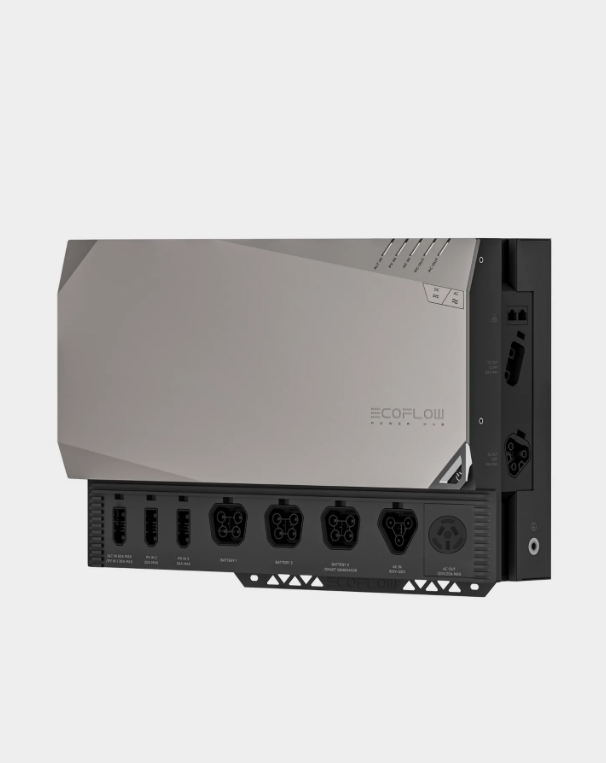

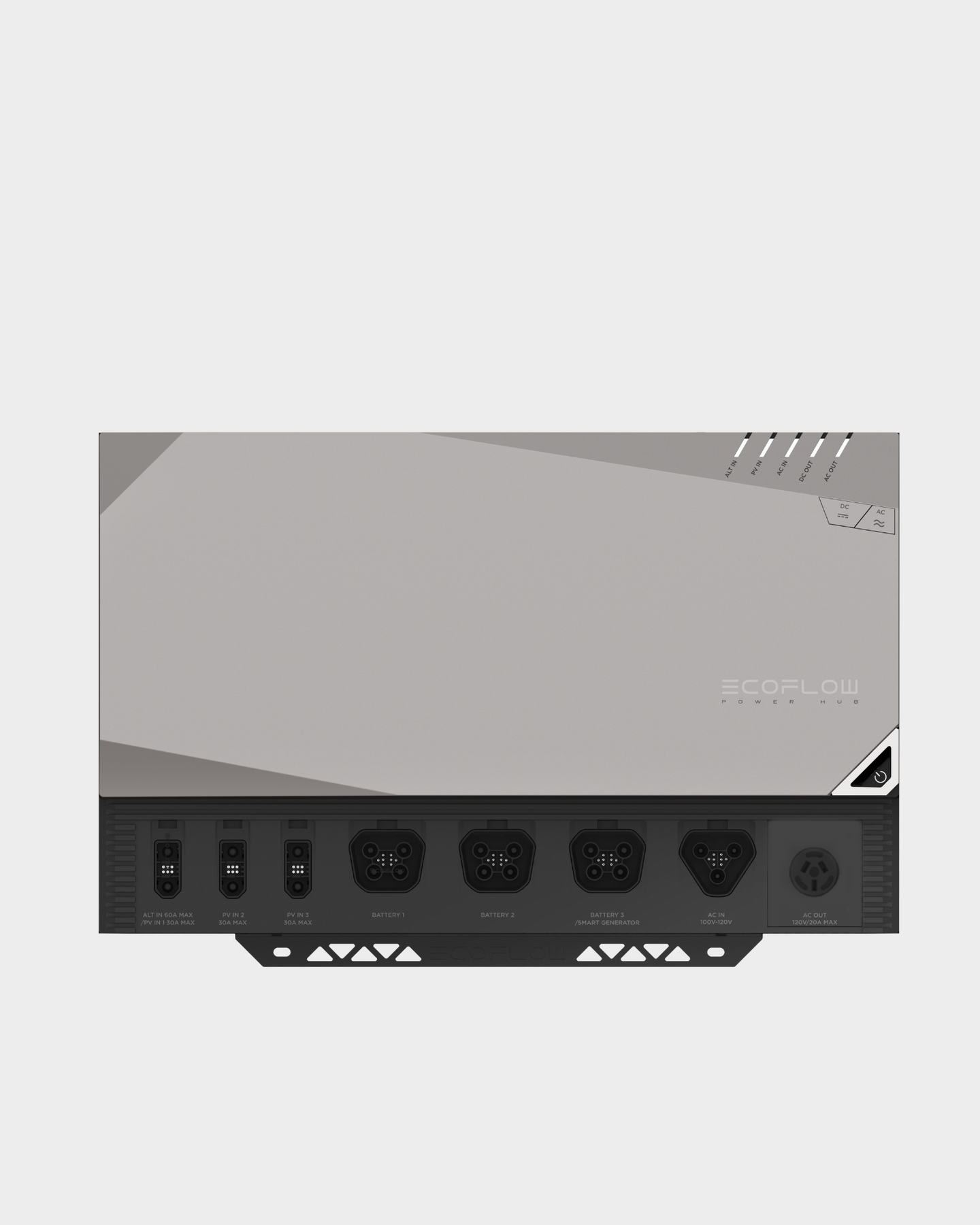

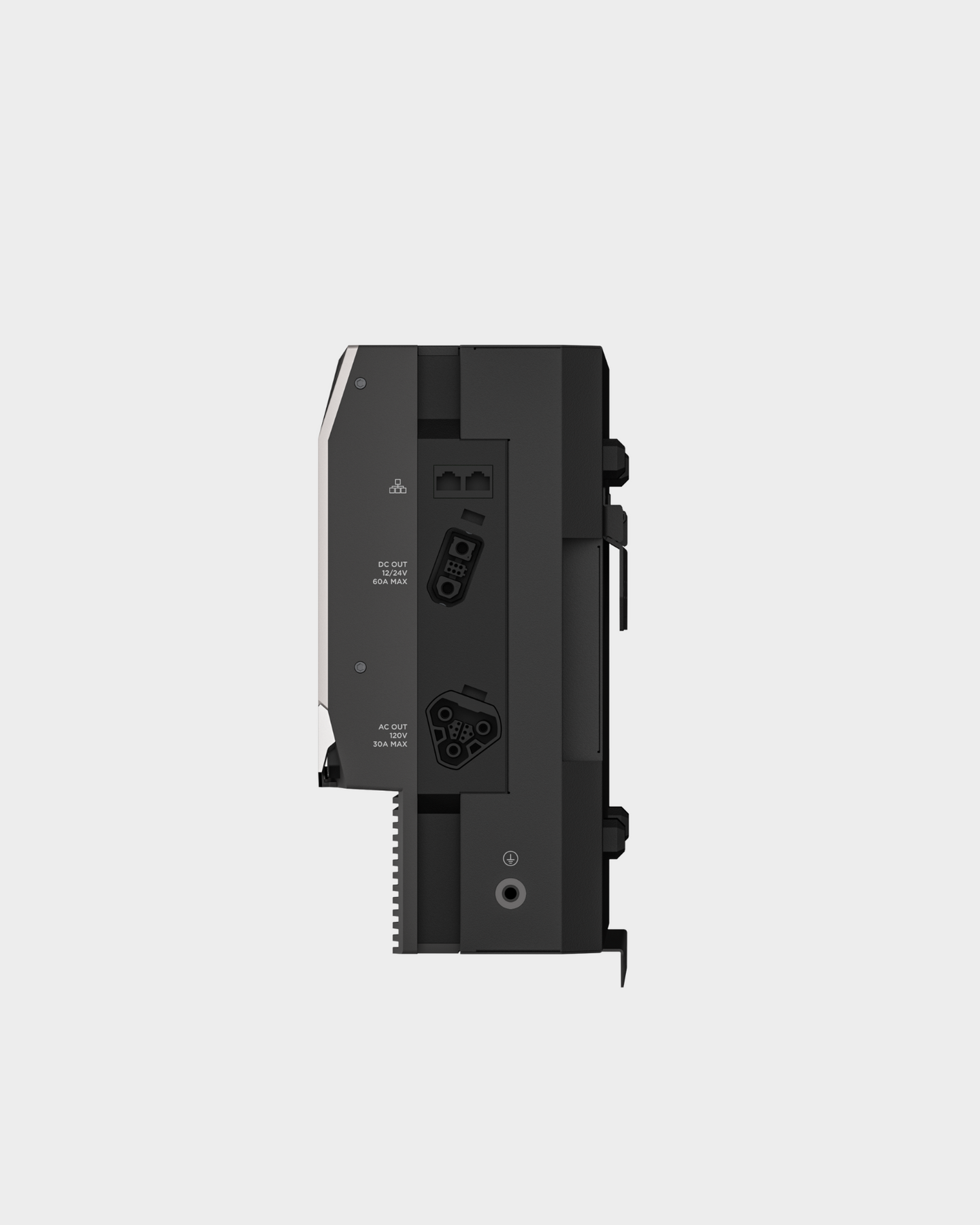

Five Electronic Essentials in one.
We combined all the essential 48V components into one plug and play power box. With fewer wires and modules it's 5 times faster to set up, save masses of space, and your wallet too.
Power Hub has a 3600W AC output, and includes two MPPT solar charge controllers, a DC-DC battery charger with MPPT, an inverter charger, and a DC-DC step-down converter. Everything you need to power your tiny home or van.
What's Included:
1 x Power hub
1 x Power Hub Alternator Charge Adapter
1 x Power Hub Solar Charge Cable (4.5 metre /20 feet
1 x Power Hub AC Charge Adapter (4.5m cable)
1 x Power Hub DC Main Adapter (4.5m cable)
1 x Power Hub AC Main Adapter (4.5m cable)
2 x Power Hub Mounting Kit
2 x RJ-45 Canbus Terminator
Key Features
Inverter Charger
Bypass Mode - sends grid power directly to AC appliances
EPS - Automatically kicks in when grid power goes
X-Boost - Allows you to reach 5000W AC Output
X-Stream - Fast charge with 3000W AC input
Battery Charger with MPPT
Smart - Automatically recognizes alternator and PV charging, and recognizes when vehicle is idle to stop drawing current
Protective - Alternator charging adjusts the current, protecting the alternator and the starter battery.
MPPT Solar Charger Controller
Independent - Three independent MPPTs can use solar panels from different brands with different power.
Smart - An exceptional MPPT algorithm (fats MPPT tracking & optimal solar yield)
High Efficiency - Outstanding conversion efficiency
Protective - Extensive electronic protection.
Built-In Wifi & BlueTooth
Use your phone to connect with the Power Hub via Bluetooth to configure your home Wi-Fi. Control your entire system using your Wi-Fi connection.
AC Outlet
Power Hub contains one easy to use, plug and play AC Outlet with 2400W Output.
Cable Pack
Each Power Kit includes a pack of five space-saving cables that reach lengths of 15ft and 20ft, allowing you to conveniently place your batteries and power sources wherever you want. The package consists of cables for AC Charging, Alternator Charging, and Solar Charging, as well as Main Out Cables for AC and DC. Each directly plugs into the Power Hub without the need for additional accessories.
ECOFLOW POWER HUB
| Net Weight |
31lbs |
| Dimensions |
30cm x 48cm 14cm (Height x Width x Depth) |
| Testing & Certifications |
CE, UL, FCC |
| Wi-Fi |
Supported |
| Bluetooth |
Supported |
| OUTPUT |
| AC Main Output / Frequency |
Pure Sine Wave, 3600W (surge 6000W), 230V~, 50Hz/60Hz |
| DC Main Output |
13.6V/70A 1000W Max; 26.4V/60A, 1500W Max |
| INPUT |
| AC Main Input |
X-Stream Fast Charging 3000W Max, 16A Max |
| AC Main Input Voltage/frequency |
220-240V, 50Hz/60Hz |
| Solar Charging Input |
15-150V 30A, 1600W Max |
| Alternator Charging Input |
13V-60V, 60A, 1000W Max |
| TEMPERATURE |
| Best Operating Temperature |
20°C - 30°C |
| Discharge Temperature |
-25°C - 60°C |
| Charge Temperature |
-25°C - 60°C |
| Storage Temperature |
-25°C - 60°C |
