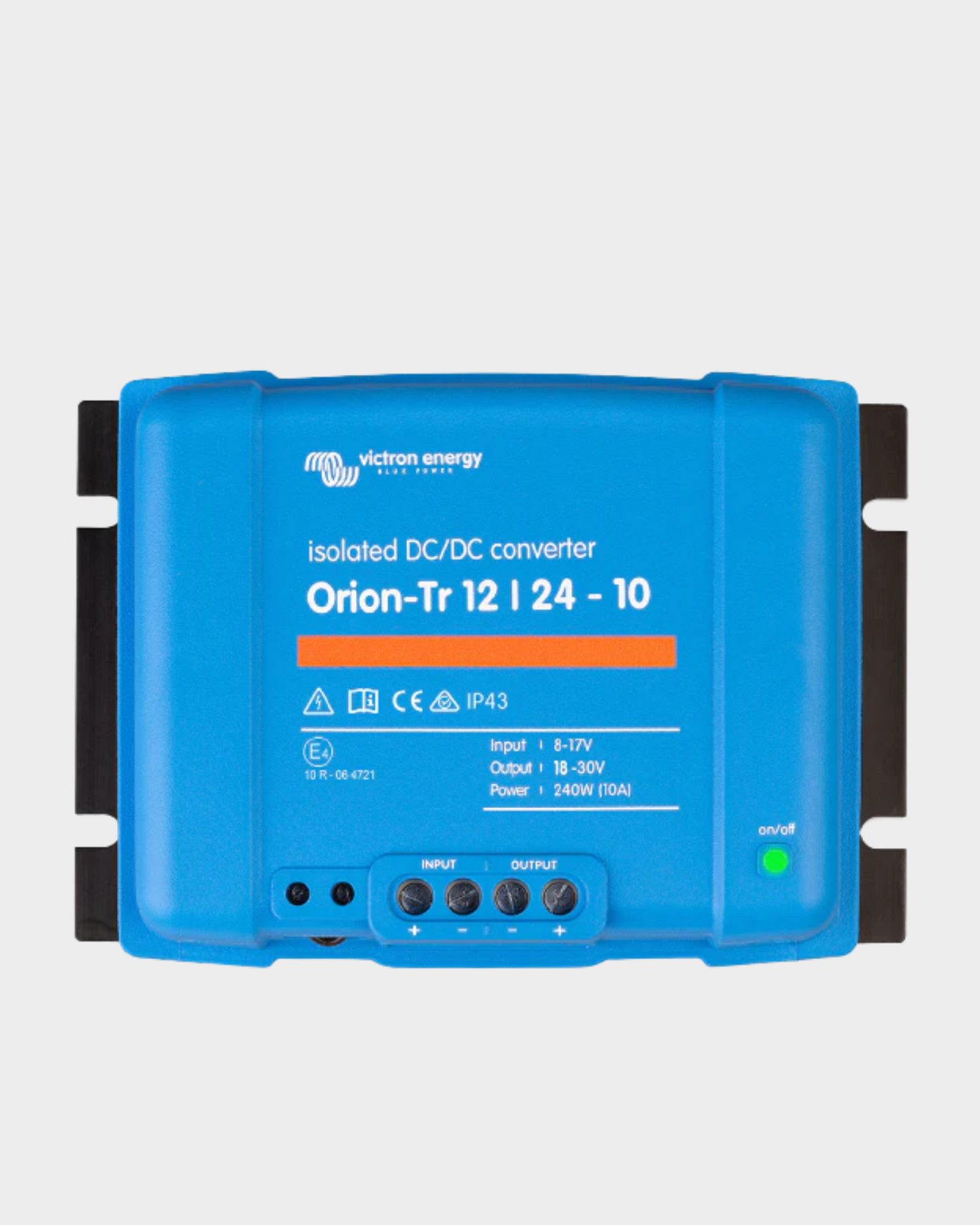

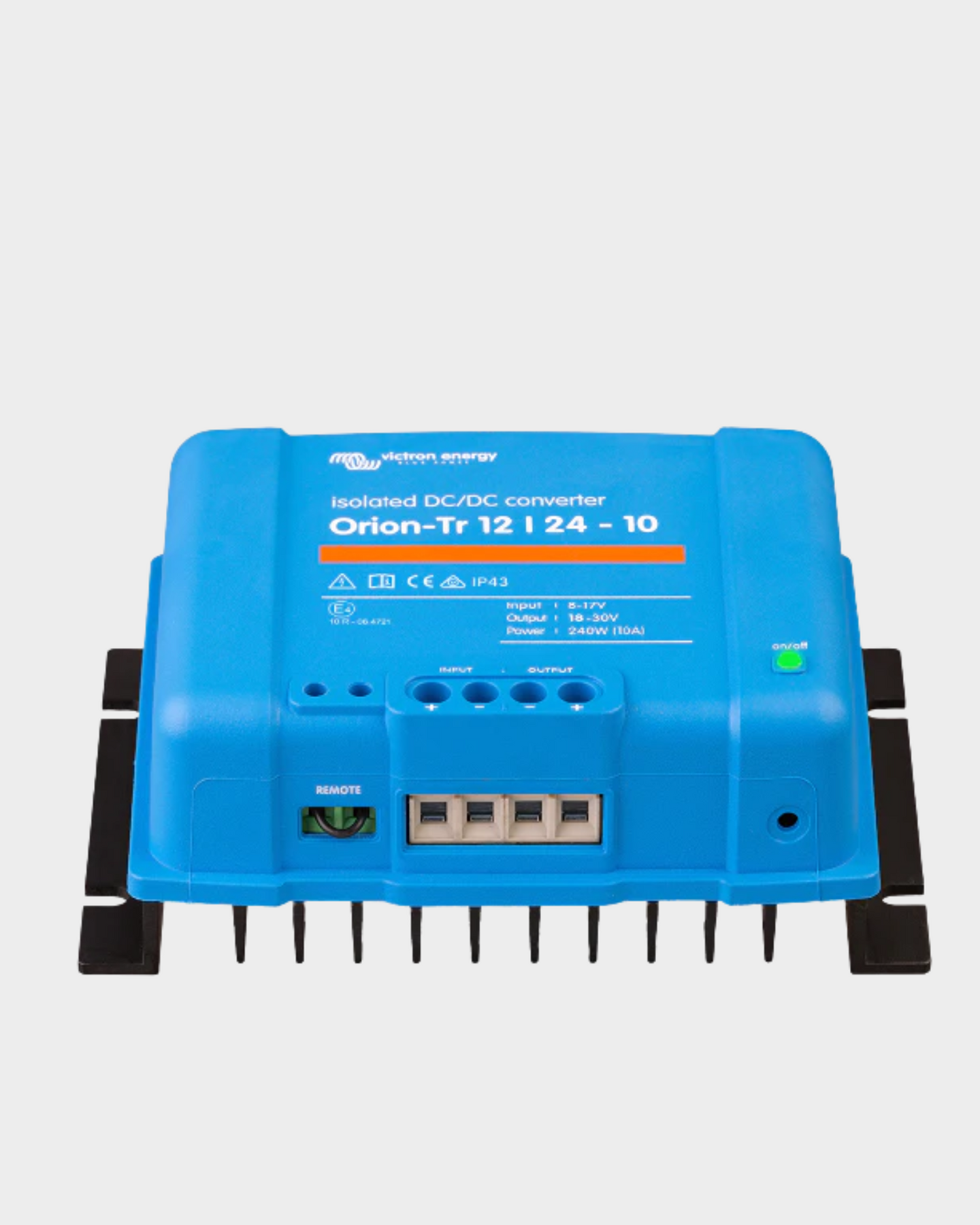

Using the Victron Orion-Tr DC-DC converter 12V to 24V is a solution to increase your vehicle charge rate to the power station by 2.5x. We have recently updated all DC DC models to the Victron Orion Smart version, which monitors input voltage and by default we will program to turn off when the vehicle turns off (or alternator is not running).

This fast charge kit is suitable for EcoFlow Portable Power Stations.

The EcoFlow power station input amps limit is 10a (15a for larger models) meaning that charging from 12V systems is capped around 120watts. However the voltage limit is 24V for the Rivers and 60V for Deltas. Therefore, raising input voltage is the best way to increase the charge wattage. By using the Victron DC-DC converter we are able to increase the voltage from 12V to 24-30V (model dependent), therefore increasing the wattage you can charge at (essentially doubling it or tripling it based on the model). We will pre-set the output voltage for you based on the model you are using it with.

This DC/DC is isolated meaning its safer to use if there is an issue on either the input or output side.

Clean Portable Power builds these units inhouse with connectors and lengths of your choice, fully tested so its plug and play.

This is available in:

10A Version - Suitable for  EcoFlow Rivers & River Pro Models

15A Version - Suitable for EcoFlow Delta Max and Delta Pro Models

An Anderson Connector is required in vehicle (see your local Auto-Electrician for this). This should have a 50a fuse on it and only operate when the engine is running (alternator supports charging). This is done via a ignition solenoid or voltage-sensitive relay. Please note this charger is for vehicles or situations that meet these pre-requisites. If you do not have an ignition controlled input, you may want to consider the 'SMART' version of this charger which controls the input voltage cutoff.

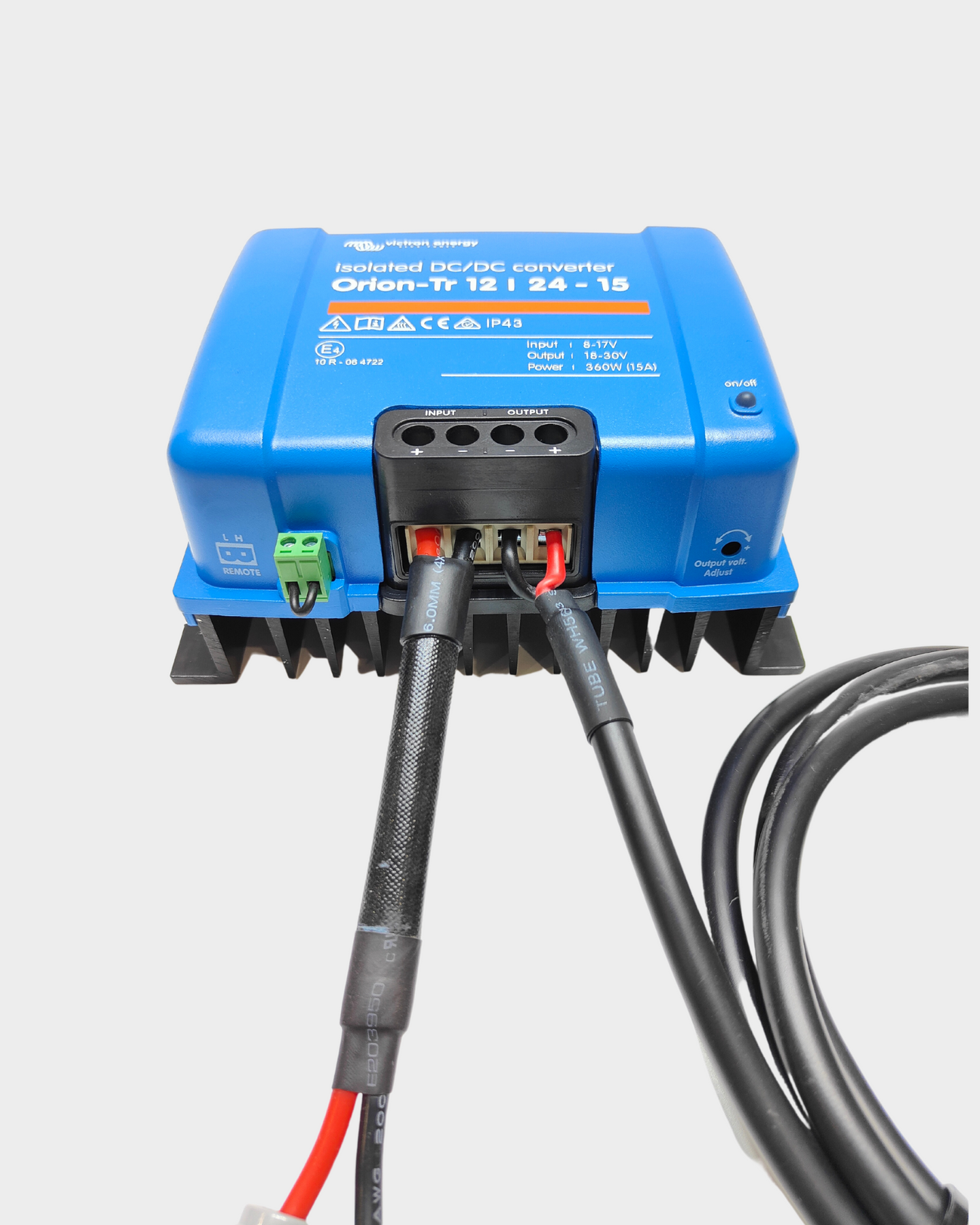

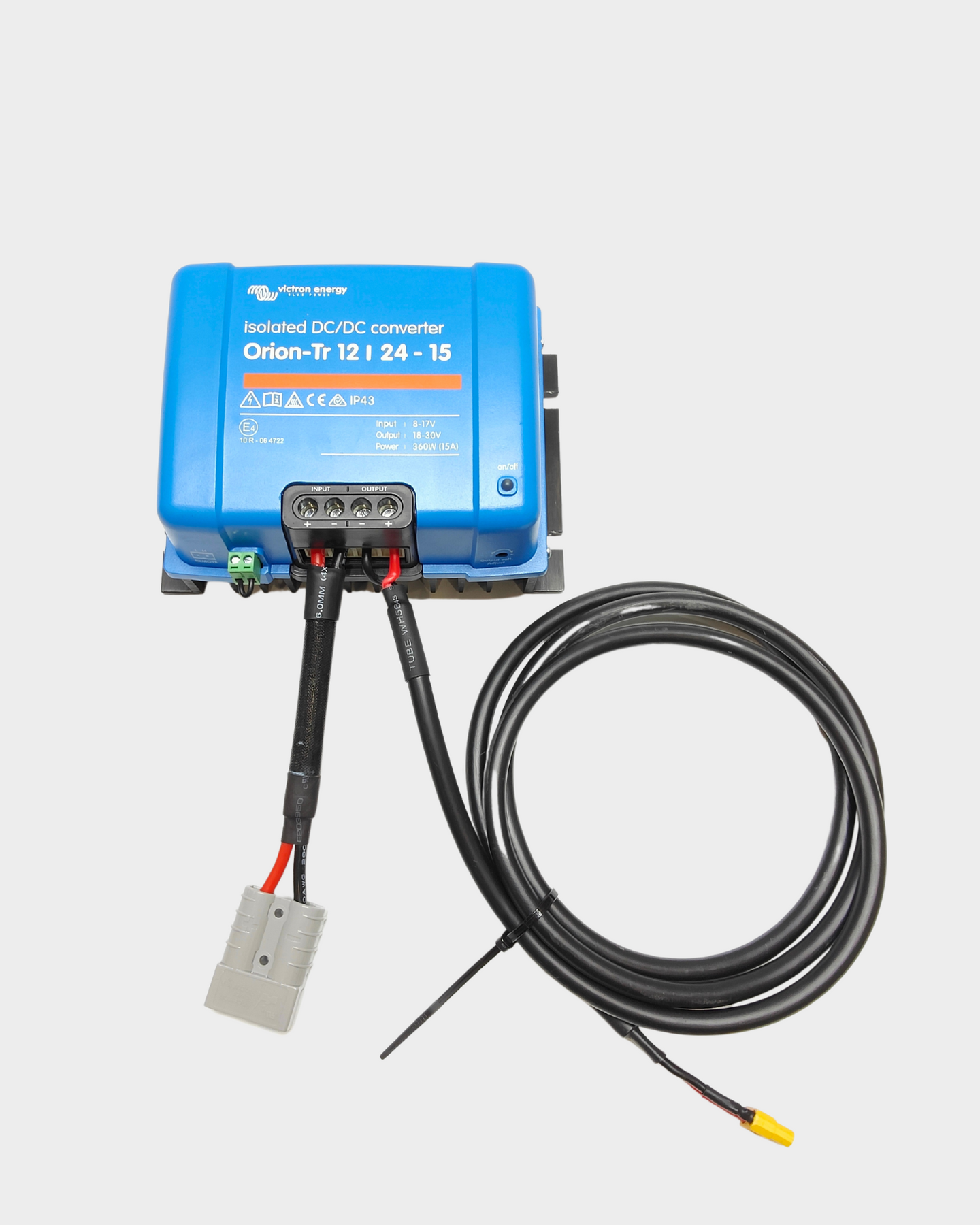

Input Cable - Anderson Connector Default (Contact us for other options).
-Available in 0.5, 1.5m, 3m & 5m lengths

Output Cable - XT60i (suitable for all EcoFlow models)
-Available in 0.5, 1.5m, 3m & 5m lengths

Our high - quality cables are made in-house Australia. We use highly flexible dual-core copper cable which is shielded and surrounded by a silicone external cable.

Charge Rates Table

Features of The Charger:

Remote on/off
The remote on/off eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or by for example the engine run/stop switch.

Adjustable output voltage: can also be used as a battery charger
For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.

All models are short circuit proof and can be paralleled to increase the output current.
An unlimited number of units can be connected in parallel.

IP43 protection
When installed with the screw terminals oriented downwards.

Screw terminals
No special tools needed for installation.
